M237R Furring Channel Resilient Mount
Acoustic Clip for Walls and Ceilings
The Resilmount® M237R is an engineered, patented acoustic mount (also known as a resilient clip) designed for direct fixing of Studco® furring channels. It provides industry-leading sound isolation by significantly reducing structural vibration and airborne noise transfer in both acoustic wall and ceiling assemblies.

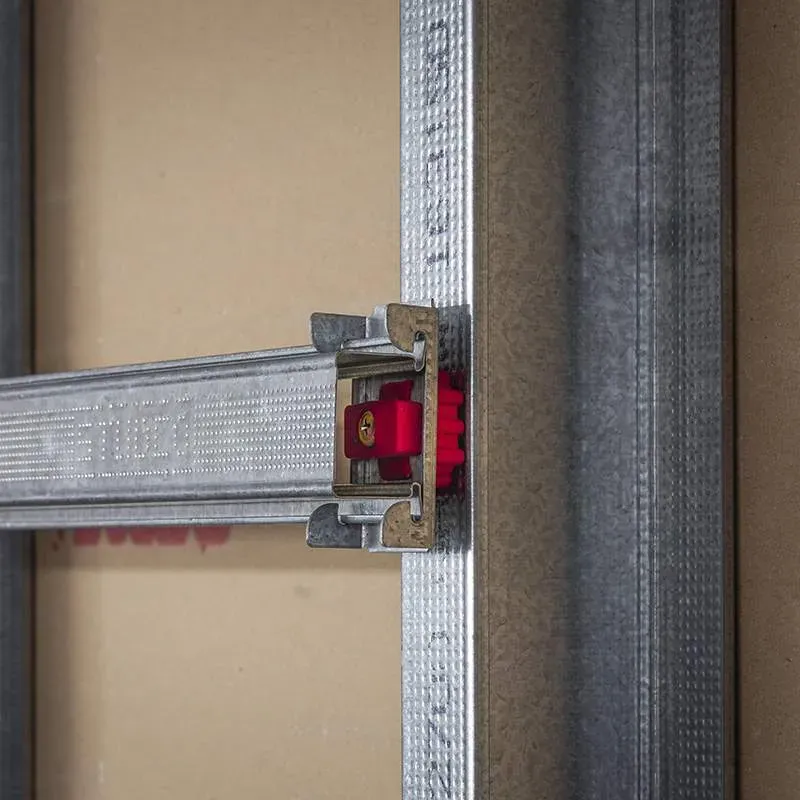

Whether you are isolating a multi-residential party wall or a commercial acoustic ceiling, this acoustic furring channel clip decouples the plasterboard lining from the internal framing, effectively disrupting the sound transmission path.
Advanced Acoustic Engineering & Material Design
Standard rubber components often degrade over time and fail to isolate low-frequency hums. The Resilmount M237R resilient mount utilises our patented thermoplastic rubber element that outperforms standard compounds due to its natural sound-absorbing characteristics.

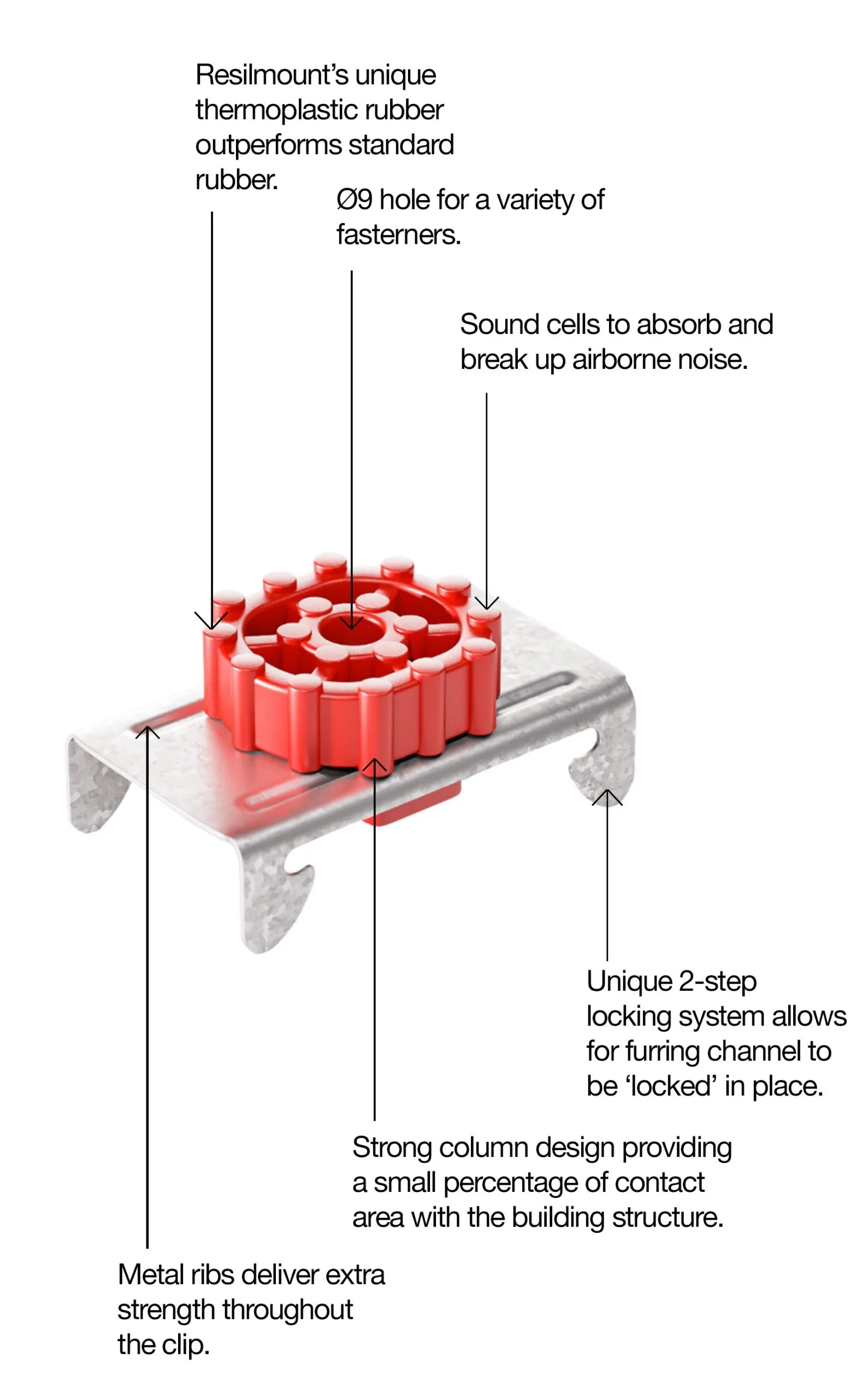

The Resilmount M237R is designed and manufactured by Studco Building Systems with a specialised, structural “sound cell,” this sound isolation clip minimises the surface area contact point between the furring channel and the substrate. The strong column architecture guards against sound transferring, absorbing and breaking up impact and airborne noise right at the transfer point.
What You Need To Know About the M237R
Key Features
- High-Performance Decoupling: Engineered thermoplastic rubber structure provides premium sound isolation that outperforms standard rubber mounts.
- Substrate Compatibility: Ideal for direct-fixing furring channels to steel studs, timber framing, concrete panels, and masonry walls.
- System Synergy: Specifically tailored to suit Studco® M308 (16mm) and M29 (28mm) furring channels.
- Load Capacity: Maximum load capacity of 25kg per resilient mount with a maximum spacing of 1200mm on centres.
- Proven Compliance: Extensively laboratory tested in certified Australian acoustic facilities for reliable wall and ceiling performance.
- Fastener Ready: Supplied with a pre-formed Ø9mm hole to accommodate a wide variety of fasteners.
- Manufactured by Studco: Proudly engineered and manufactured under a strict ISO9001 quality control system by Studco Building Systems, ensuring reliability and world-class quality standards.
AUS Patent 2007226819
Pair with Studco Furring Channels

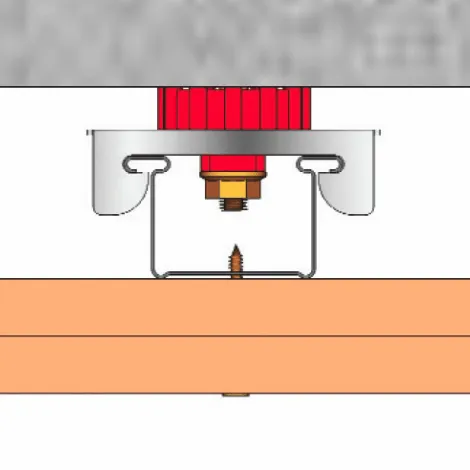

Resilmount M237R is designed to pair with Studco M308 16mm and M29 28mm Furring Channels. Made from Bluescope steel and rolled in-house at Studco’s manufacturing plant in Victoria, these furring channels are ideal for either wall or ceiling installations. A durable furring channel these ‘hat shaped channels’ are available in standard lengths to minimise labour and cost on-site.
M237R clips can be spaced up to 1200mm apart along furring channels and are simply installed using a unique 2 step locking system (see Features above). Additional specialised Resilmount clips are also compatible with Studco furring channels. For further details, click here.
Australian Made & NCC Compliant
Studco® has proudly serviced the Australian construction sector for over 40 years. The M237R acoustic mount is manufactured by Studco under a strict ISO9001 quality management system, in-house at our manufacturing plant in Victoria.
By utilising local manufacturing, Resilmount provides specifiers, acoustic engineers, and contractors across Australia with fully traceable, National Construction Code (NCC) compliant soundproofing solutions designed to meet stringent acoustic star ratings.
FAQ
Q: What fasteners should be used to fix the M237R sound isolation clip to the wall substrate?
A: For steel studs and timber framing, a minimum 8-gauge screw is recommended. For masonry walls and concrete panels, high-quality masonry sleeve anchors or concrete pins should be used, adhering strictly to the fastener manufacturer’s specifications.
Q: Where can I buy the Resilmount M237R acoustic mount in Australia?
A: Resilmount products are available nationwide through approved building material distributors, specialised ceiling and wall suppliers, and soundproofing specialists. Contact the Studco team directly to find your nearest local stockist or to request a project quotation.
Q: Is the M237R the right Resilmount clip to use on my project?
Resilmount has an expansive range of general and specialised sound isolation clips, mounts, brackets and hangers. The Resilmount team are available to assist you in finding the right acoustic clip for your project.
Q: Is the M237R covered under a Studco warranty?
Yes, this product is covered by a five year warranty. Fill in the warranty form to receive a warranty certificate for your Resilmount project.

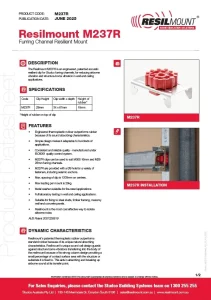

M237R Datasheet
Resilmount Brochure
Wall & Ceiling
Design & Installation Manual
